Terracotta Panles, produced by moden prodution technicques, manufactured from nature clay, extrued into shapes and then fired at high temperature.It’s available in a wide range of colours, profiles and finishes.
Terracotta Ventilated facades, with high level of heat insulation and sound proofing, are known as the best solution for for modern rainscreen and sunscreen facades.
Terracotta Panel- Production Process
Large quantity raw material stock
Top brand Germany and Italy production lines
Stable quality control, large prodution capacity and fast delivery.
Nature clay treatment --Extrusion--Drying --Glazing if needed--Firing --Cutting and inspection--QC control--Packing and Delivery.
Terracotta Panel-Dimensions
Terracotta Panels are normally of a thickness of 18mm, 20mm, 25mm and 30mm 40mm. All sizes can be customized made.
T18 series
Length: 300~1500 mm
Width: 206,306,356,406,456,506,556,606mm.
H20 H25 H30 series
Length: 300~1500 mm
Width:260,310,360,410,460,510,560,610mm
Terracotta Panel-Colors
Terracotta panel are available in more than 70 standard colors. More colors can be get by glazed.The color will be never fade.
 |  |
| Brown | Grey |
 |  |
| Red | Yellow |
 | |
Terracotta Panel-Surface Texture
Facade terracotta panels produced with lots of different surface texture,such as natural,groove,matte glazing,glossy glazing,metallic glazing,sandblasted,and other customized finishes.Terracotta panel perfect shows different facade styles and effects for different architectural styles,and also meet architects'fully dream drawing design for different facade wall.
Terracotta Panel Technical Data
Breaking strength in N-3634 (Tested by EN ISO 10545-3:1997)
Abrasion resistance:174-205(Tested by EN ISO 10545-6:2012)
Modulus of ruptur in N/mm2--25((Tested by EN ISO 10545-4:2019)
Thermal expansion-5.8 x 10-5C-1 (Tested by EN ISO 10545-8:2004)
Reaction to fire-Class Al
Frost resistance Fully resistant (Tested by EN ISO 10545-12:1997)
Thermal shock resistance -Fully resistant(Tested by EN ISO10545-9:2013)
Water absorption-6.20%(Tested by EN ISO 10545-3:1997)
Terracotta Panel-Installation Technical
Terracotta panel's insallation system is durable aluminium and stainless steel subframing,suitable for all applications.
T18 Type Terracotta panel'sinstallation drawing
 |  |
 |  |
H30 Type Terracotta panel's installation drawing
 |  |
 |  |

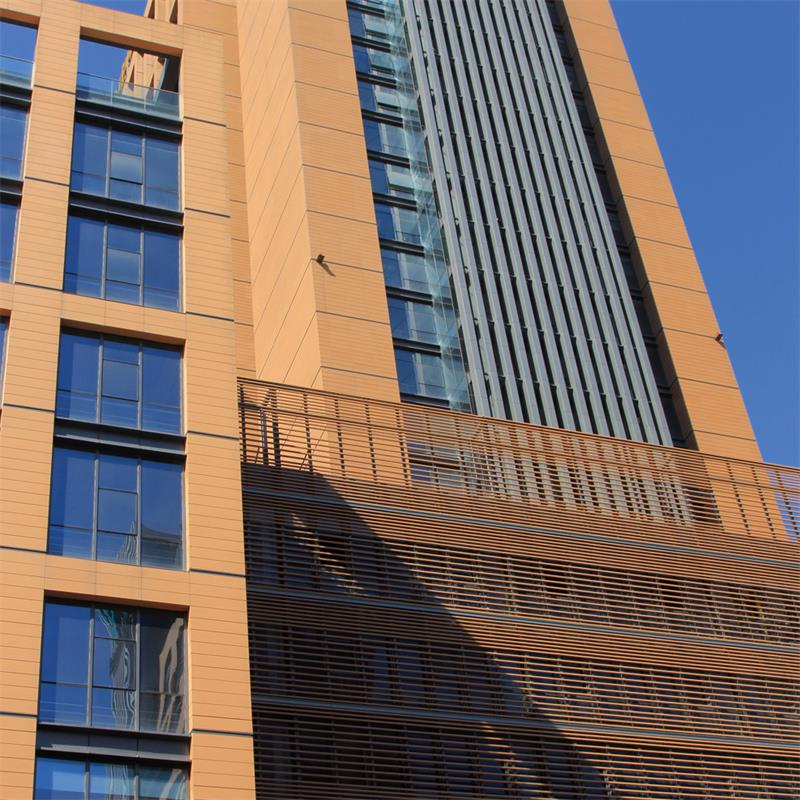

Terracotta Ventilated facades,with high levelof heat insulation and sound proofing, are known as the best solution for building external facades.
More detailed information, pls contact with team.
Special Shape Terracotta Panel
 |  |  |  |  |  |
 |  |  |  |  |
Why Choose Terracotta Panle
100%nature caly
No Fading and non-combustible
Durable and high strength
Scratch and dent-resistant
Extreme UV and weather resistance
Environmentally Friendly
Impact Resistant but light weight
Higher thermal insulation,improved noise reduction
