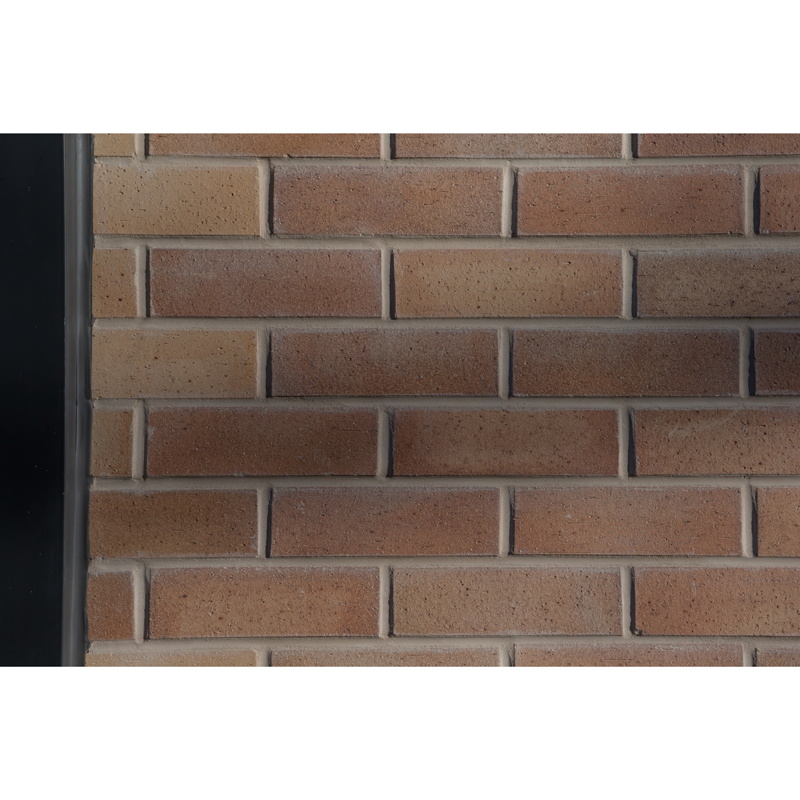

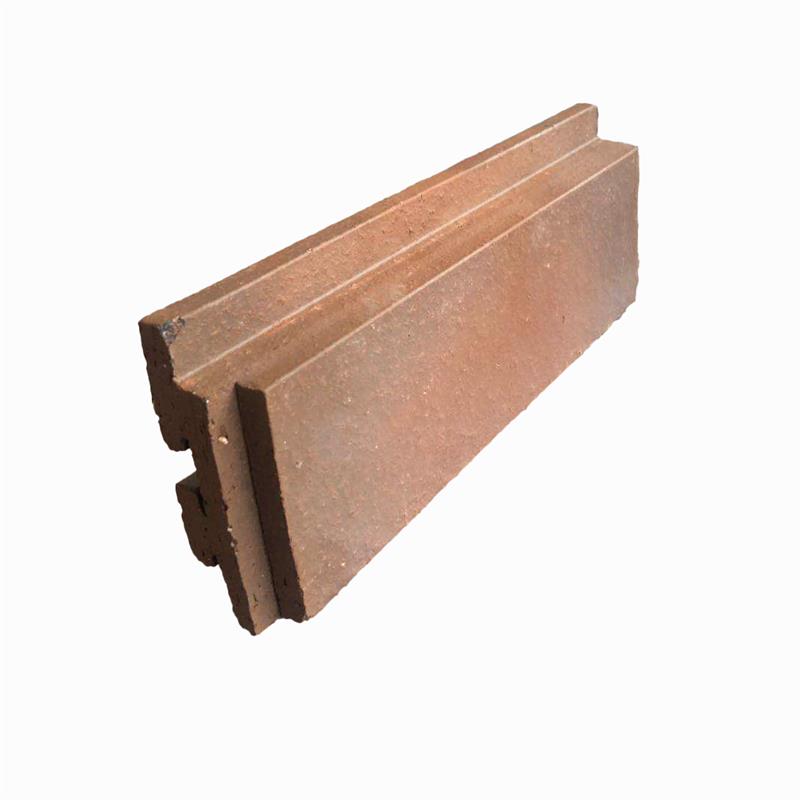

Clinker Brick, manufactured from nature clay, extrued into shapes and then fired at high temperatures. It's available in a wide range of colours, profiles and finishes. With high strength,best durability and color non-fading, the clinker bricks are widly used for external wall cladding and facade system.
Brick Properties
Breaking strength in N – 2952 (Tested by EN ISO 10545-4:2019)
Modulus of rupture, in N/mm2--25 ((Tested by EN ISO 10545-4:2019)
Thermal expansion – 4.6 x 10-6°C (Tested by EN ISO 10545-8:2004)
Reaction to fire – Class A1
Frost resistance – Fully resistant (Tested by EN ISO 10545-9：2013）
Thermal shock resistance – Fully resistant (Tested by EN ISO 10545-9：2013）
Water absorption – 6.70% (Tested by EN ISO 10545-3:2018)
Brick Size
Standard brick width (H) – 65mm/71mm/85mm
Standard brick length（L) – 210mm-280mm
Standard brick thickness（T) – 23mm/25mm/28mm

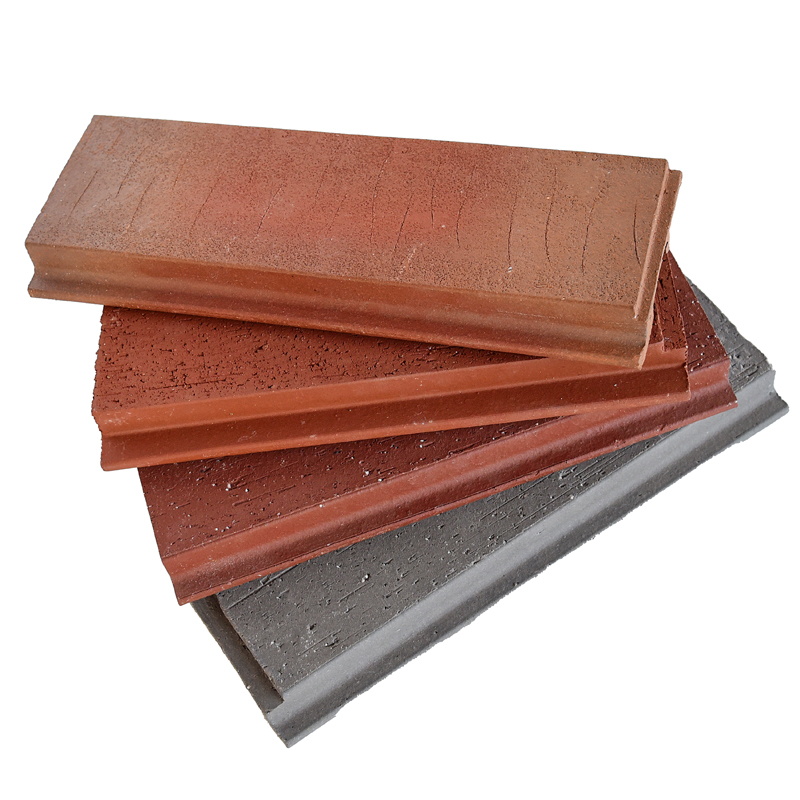

Brick Color
Bricks are available in more than 70 standard colors. Bright colors also can be reached by glazing. We assure the color will never fade.
Brown Grey Red White Yellow Mixed Specifical
Brick Surface Texture
Bricks through different production treatment, the surface can be for flat, rough ,sand, paint or glazeing, etc,there can be various surface textures。
Strong Point For Clinker Brick
Light-Weight/ISO 9001/14001 CE EN 14411/UK BBA/ CWCT TESTING
Fire Resistance:The klinker has got no synthetic pigments. This makes it absolutely inflammable
Frost Resistance: The technology of vertical vacuum extrusion produces a high density material , with no micro cracks and no emptiness . Due to these factors the Clinker demonstrates its best qualities.
Moisture Resistance:As natural clinker has low water absorption it resists snow, rain and humidity. No fungi, no stains.
Thermal and Noise Insulation:The klinker cladding makes your house comfortably warm and quiet, safe against outside noise.
UV Resistance:Natural klinker is made only of natural raw materials. This makes it UV-resistant.
The color fastness:The klinker tile colours do not fade-out in the sun. Even 50 years later the facade of your house looks as new.

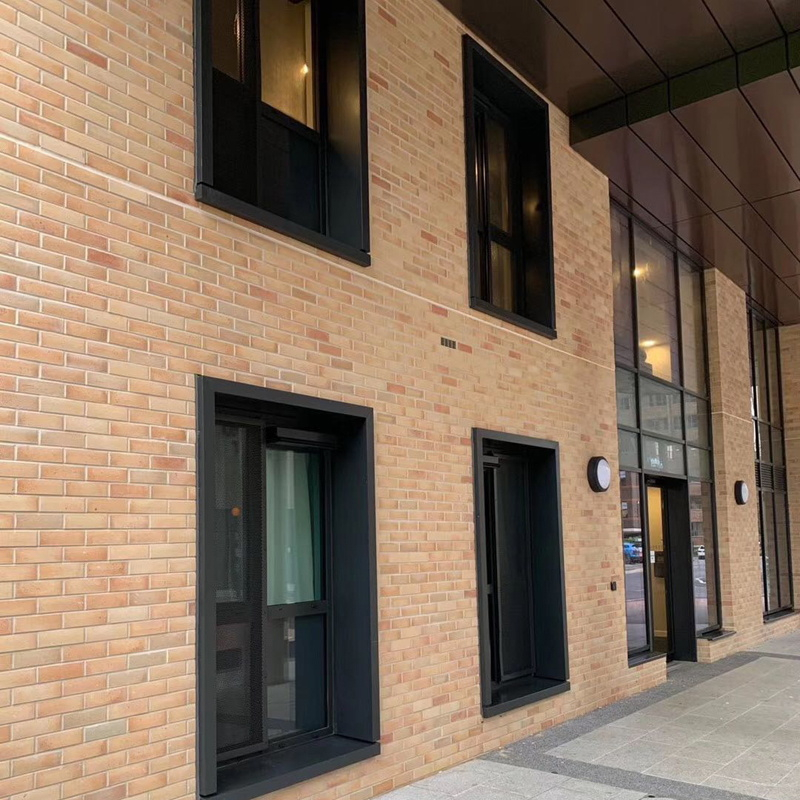

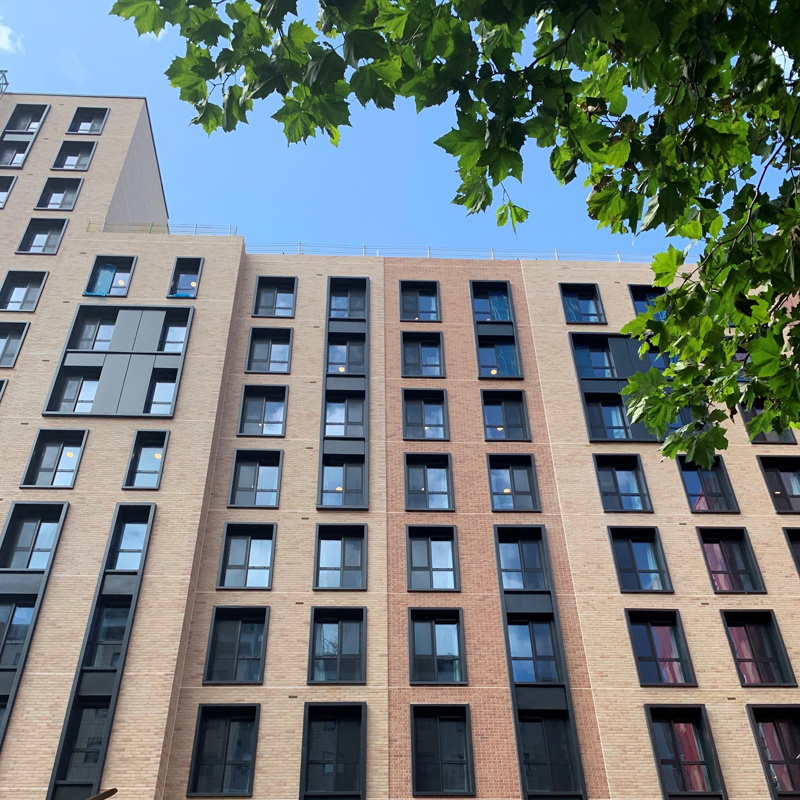

Clinker Brick System Description
A lightweight rainscreen brick cladding system, which combines the natural beauty of clay brick, with Fast and simple installation but less cost.
It combination a facing brick finish and façade system, rather than traditional masonry.create a harmonious sense of the landscape and space,interpret the marvelous blend of nature and space.
Using high strength bricks, and alvanised steel or Grade 304 stainless steel support rail, this system has an anticipated design life of more then 50 years in most applications.
Clinker Brick System Benefits
Easy Installation
The process starts by installing an insulation layer, then the main framework, and afterwards the special profile for clinker tile. This increases the speed of job and helps protecting cladding elements from being damaged and from dirt. Special short clips on the profile make safe fix of clinker on a facade. Lightweight brick make fast installation and save lots of labor cost.
Convenience of Operation
The unique form of Natural Clinker has one more important advantage. If necessary separate tiles can be replaced with no need to dismantle of other elements of the cladding. To remove a tile, it is necessary to offset it up against the stop. This manipulation allows to unbend the clip of the profile and then the tile is easily taken out. This saves a lot of time and makes the process if installation or maintenance fast and easy.
100%Ventilated Facade
The seams between the tiles allow the air to go round the walls.This makes the whole system a really ventilated facade.Durable,Elegant Look.As there is no sealing there is no problem with seams cracking and tile destruction eventually,Admire your house facade for many years.
System Properties
Maximum vertical support centres-600mm / Movement joints Maximum 6m / Brick rail length -3000mm / Resistance to wind loading 2.4kN/m2 / System weight-58kg/m2
More Deatailed information, pls contact with our team freely, thanks.
